BX

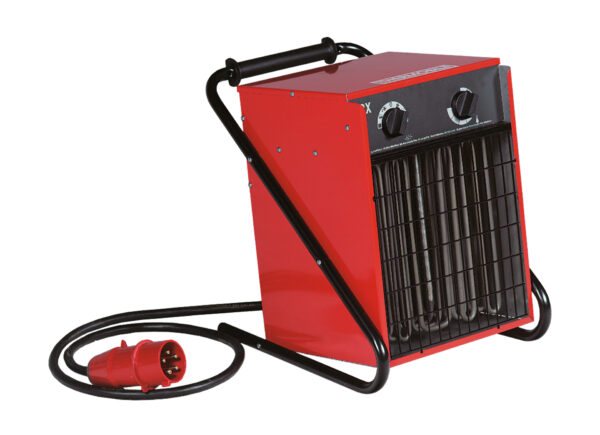

The Thermobile BX is a powerful electric heater in a small size. Suitable for heating small and medium-sized rooms, it is perfect for keeping workshops, for example, at the right temperature.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
15
-
400/3/50
-
–
-
1000
-
0 – 7.5 – 15
-
42
-
11.2 – 21.9
-
40x36x49
-
40x36x49
-
13
-
15
Characteristics
Robust heater for professional use.
Stable bracket, also for wall mounting.
Built-in thermostat.
Stainless steel heating elements.
Fixed outlet temperature between 30°C - 60°C.
Selector switch with 6 positions for continuous ventilation or switching off via thermostat.
Suitable for enclosed spaces.
Quick to deploy.
- Heating workshops
- Heating construction projects
- Heating drying projects in conjunction with construction dryers
- Heating smaller rooms
BX models
Compare Performances
Performance Chart
| BX-20 | BX-9 | BX-30 | BX-15 | BX-3 | |
|---|---|---|---|---|---|
| Max. Capacity (kW) | 20 | 9 | 30 | 15 | 3 |
| Power Connection (V/ph/Hz) | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 230/1/50 |
| Min. luchtverplaatsing (m³/u) | - | 700 | - | - | - |
| Max. luchtverplaatsing (m³/u) | 1750 | 900 | 1900 | 1000 | 220 |
| Setting Range (kW) | 0 - 10 - 20 | 0 - 4.5 - 9 | 0 - 20 - 30 | 0 - 7.5 - 15 | 0-2-3 |
| Delta ΔT (ºC) | 32 | 36 - 28 | 47 - 34 | 42 | 38 |
| Measured Amperage 230V (A) | 15 - 29.5 | 6.8 - 13.3 | 43.4 | 11.2 - 21.9 | 8.9 - 13.2 |
| Dimensions LxWxH (cm) | 61x57x57 | 39x52x49 | 61x57x57 | 40x36x49 | 37x28x33 |
| Weight (kg) | 25 | 12 | 30 | 13 | 6 |
| Packaged Weight (kg) | 29 | 14 | 34 | 15 | 7 |
| Fuel Type | Electricity | Electricity | Electricity | Electricity | Electricity |
| Packaged Dimensions LxWxH (cm) | 40x36x49 | 51x44x69 | 40x36x49 | 36x28x34 |
