SKU: 56012000
The Thermobile TCM-12 is a mobile tent air conditioner for cooling, heating and ventilation. It delivers 12 kW cooling and 9 kW heating capacity in a robust, stackable steel housing sized for a Euro pallet.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Mobile air conditioners for tents and temporary installations. The TCM-12 cools, heats and ventilates in one robust, stackable unit.

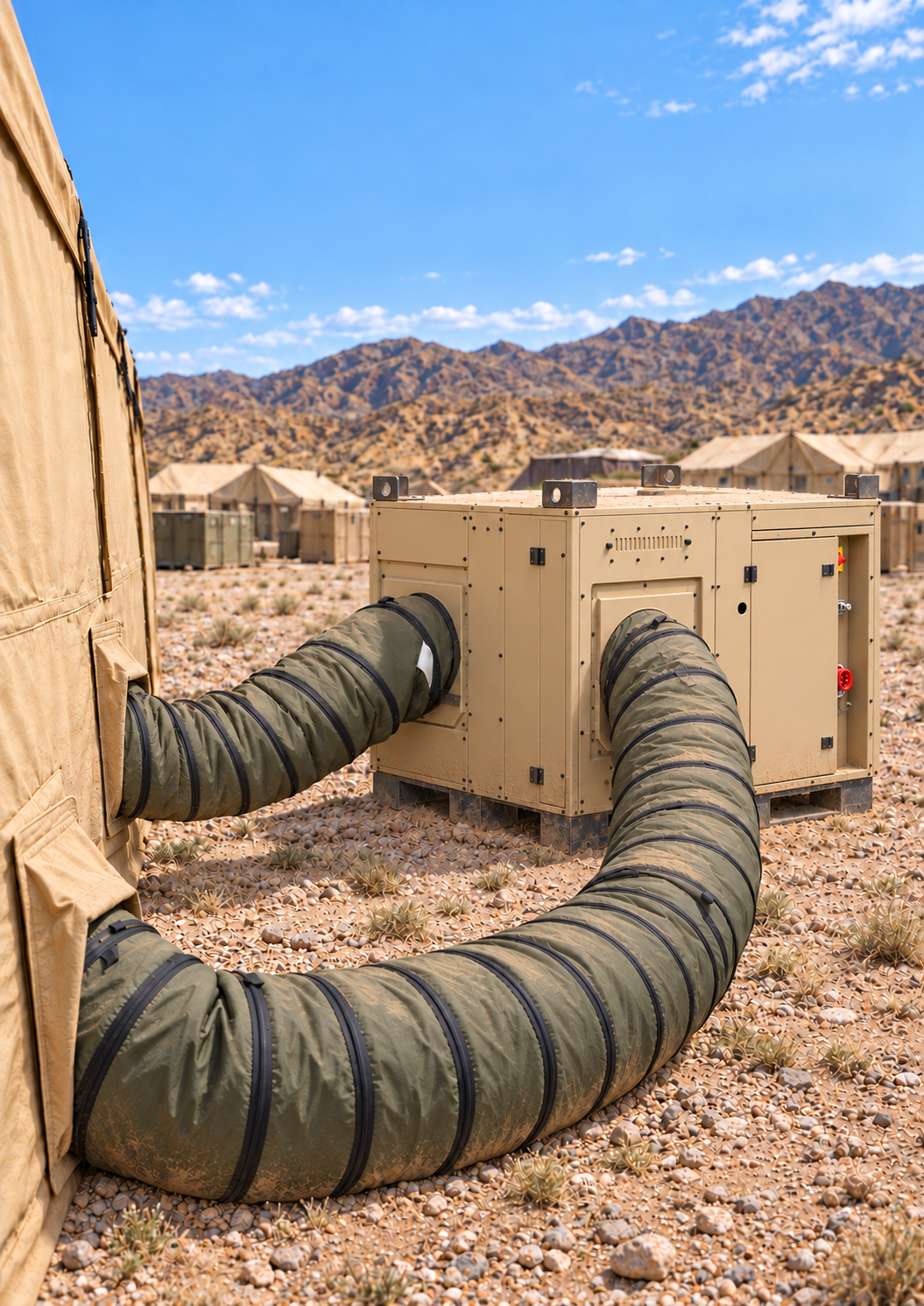

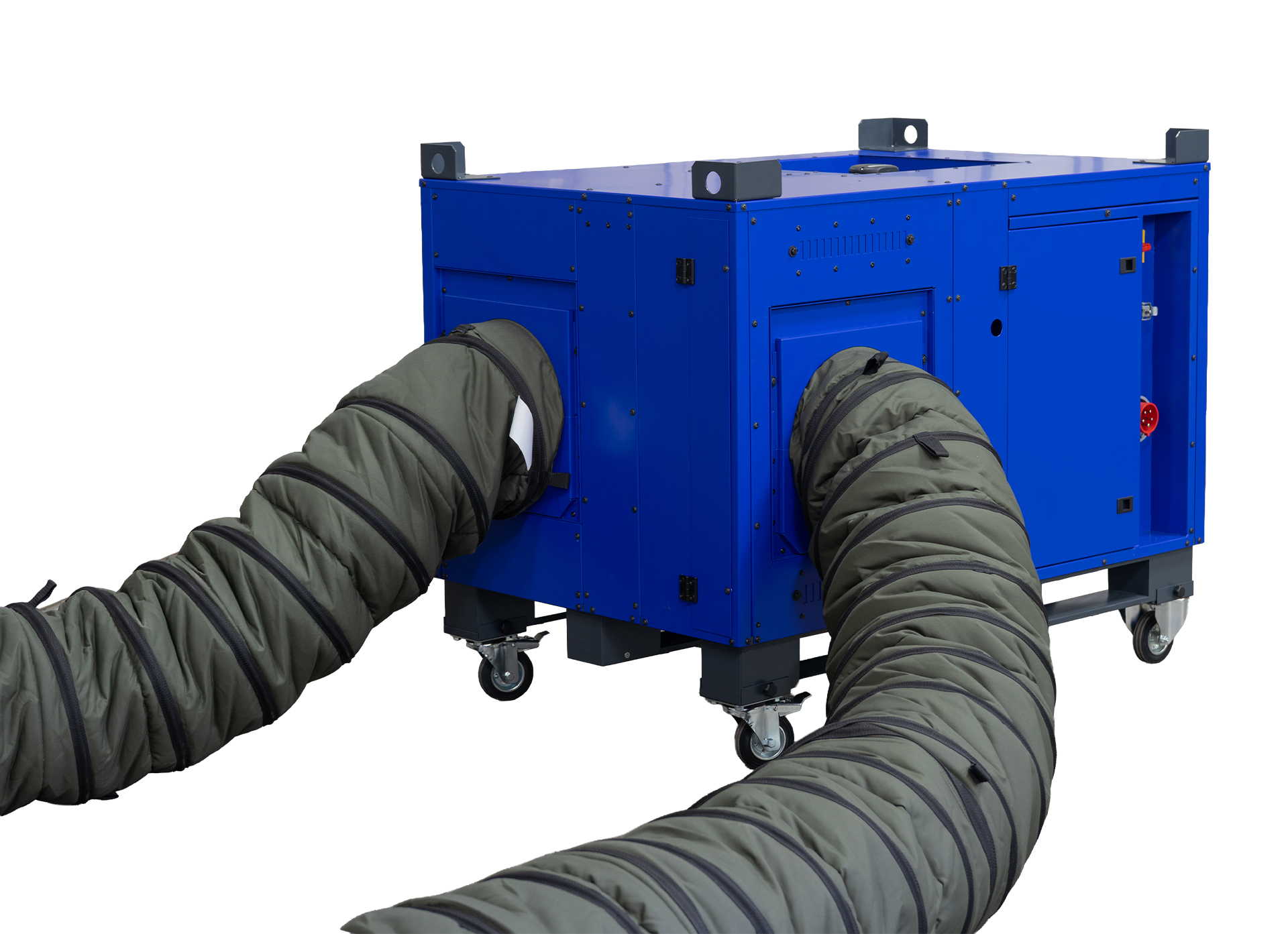

The Thermobile TCM is a mobile tent air conditioner for reliable climate control in temporary and mobile applications, such as tents in military and operational environments. The TCM-12 cools, heats and ventilates in one unit, with 12 kW cooling capacity and 9 kW heating capacity.The robust housing of phosphated, powder-coated sheet steel fits on a Euro pallet and is stackable. Removable swivel castors and insulated air hoses for supply and return air are available as options.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
12
9
1700
400/3/50
16
-15 / +50
X4
Yes
R1234yf
1
300
120x80x80
190
Cooling, heating and ventilation in one unit.
Cooling capacity 12 kW, heating capacity 9 kW.
Housing of phosphated, powder-coated sheet steel.
Compact design sized for a Euro pallet, stackable.
Forklift slots and lifting eyes for easy transport.
R1234yf refrigerant with a GWP of 1.
Compare Performances
| Cooling capacity (kW) | 12 |
| Heating capacity (kW) | 9 |
| Airflow (m³/h) | 1700 |
| Power supply (V/ph/Hz) | 400/3/50 |
| Maximum running current (A) | 16 |
| Operating range (°C) | -15 / +50 |
| Protection rating (IP) | X4 |
| Thermostat connection | Yes |
| Refrigerant | R1234yf |
| Refrigerant GWP | 1 |
| Duct connection diameter (mm) | 300 |
| Dimensions LxWxH (cm) | 120x80x80 |
| Weight (kg) | 190 |
