MBT

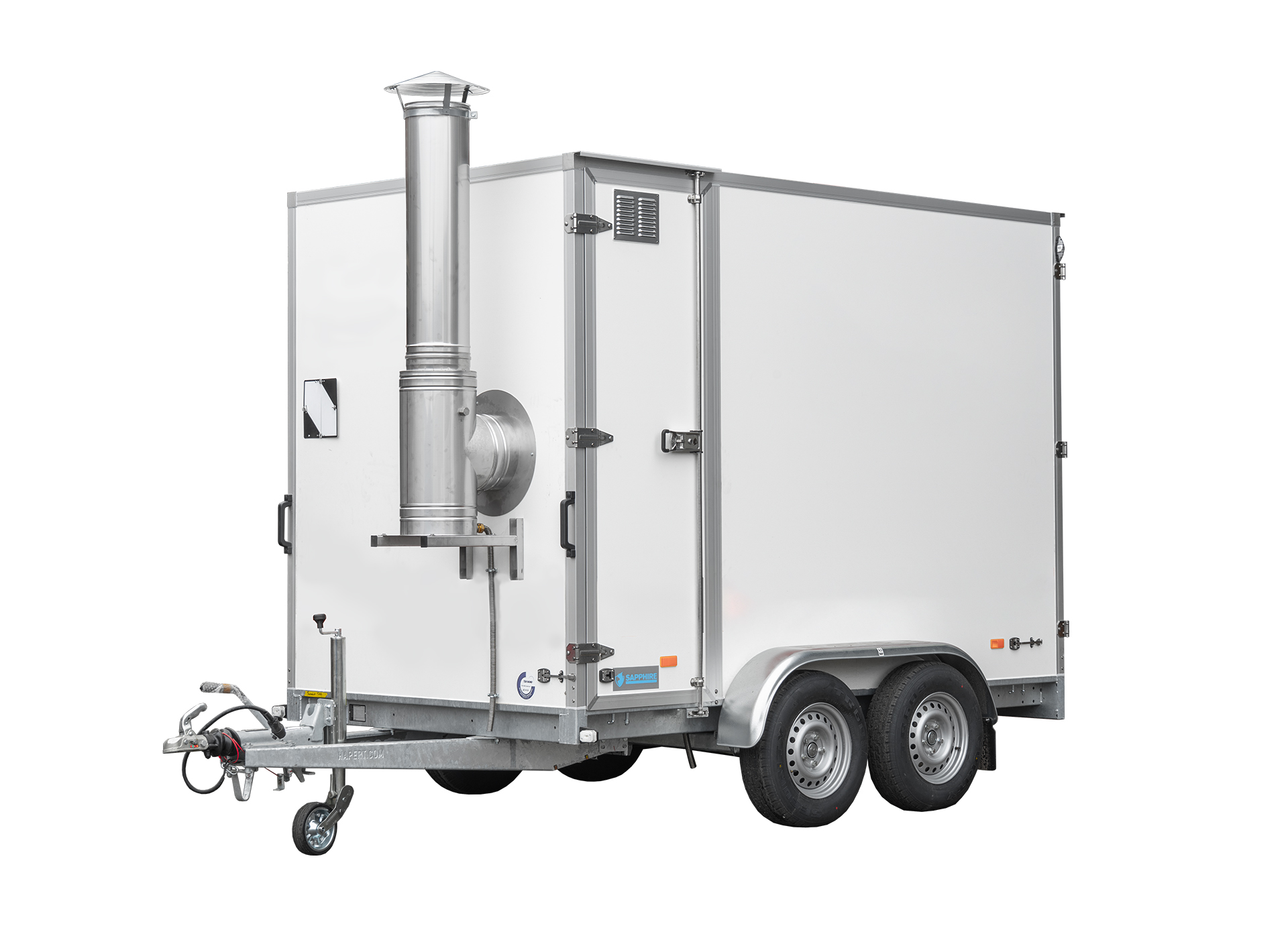

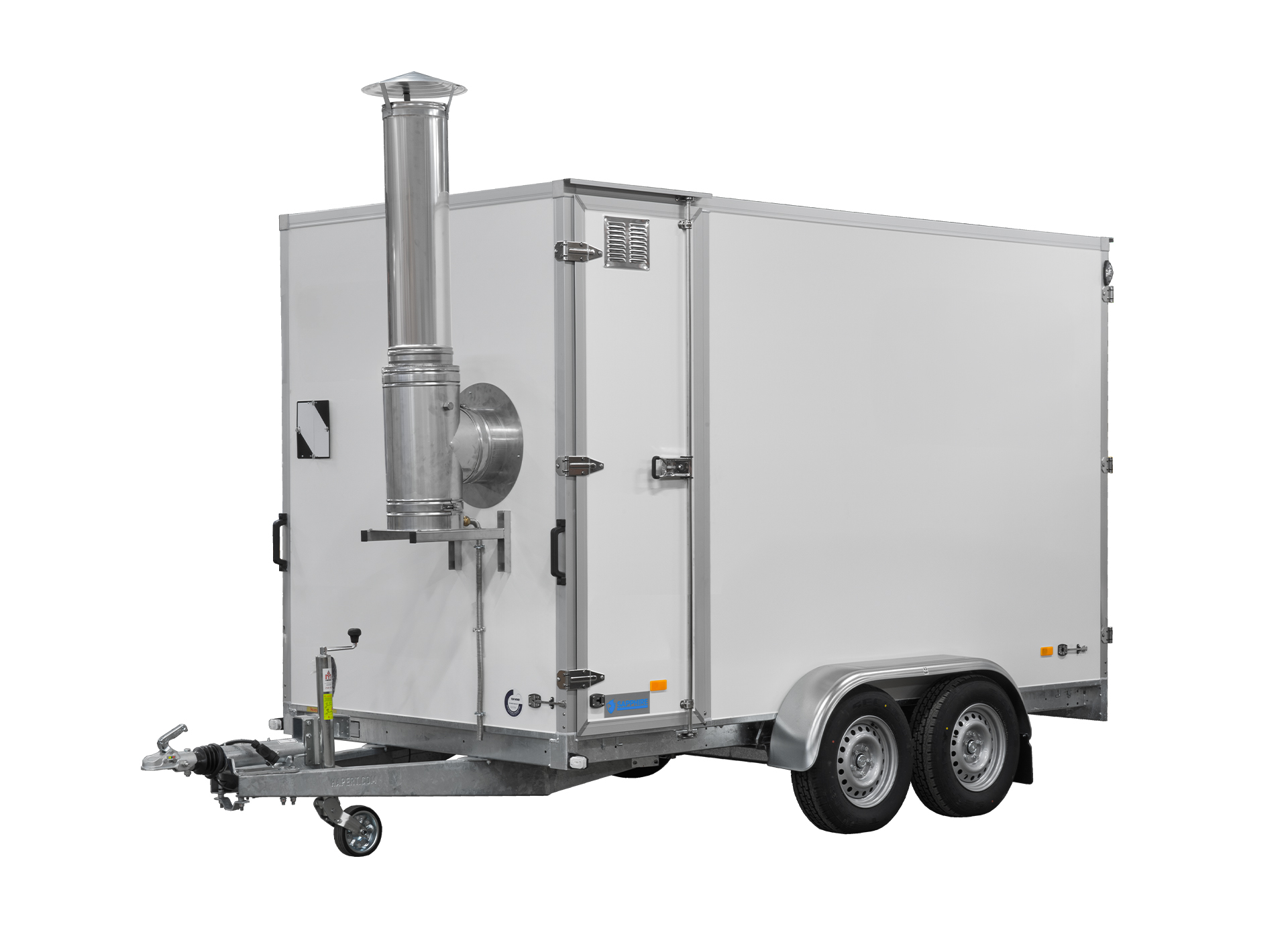

Discover the powerful MBT mobile boiler – the solution for temporary large-scale heating. This oil-fired high-efficiency boiler is fully mounted in a robust trailer and designed for fast and efficient deployment at construction sites, during renovations, or as emergency heating.
Available in two power capacities (up to 350 kW), the MBT ensures consistent performance with a maximum temperature of 90 °C. The integrated Fleet Manager system (Calculus) provides full insight into performance and fuel usage, wherever you are. Its powerful built-in water pump makes it perfect for large heating circuits, and the automatic switch between internal and external fuel tanks adds operational flexibility.
Equipped with an advanced safety system, intuitive display controls, and compatible with alternative fuels such as HVO and GTL, the MBT offers a future-proof and sustainable heating solution.
Whether for a temporary project or unexpected outage – the MBT mobile boiler provides reliable heat, quickly deployable and easy to use.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
-
Diesel -
Petroleum/Kerosene -
HVO -
GTL
MBT models
Compare Performances
Performance Chart
| MBT-165 | MBT-350 | |
|---|---|---|
| Max. Capacity (kW) | 165 | 350 |
| Min. Capacity (kW) | 100 | 200 |
| Max. Outlet Temperature (°C) | 90 | 90 |
| Net Efficiency 2nd Phase (%) | >95 | >95 |
| Aansluitingen circuit (Inch) | 2 camlock | 2 camlock |
| Measured Amperage 230V (A) | 5 | 6 |
| Power Connection (V/ph/Hz) | 230/1/50 | 230/1/50 |
| Fuel Tank Capacity (l) | 700 | 1500 |
| Max. Fuel Consumption (l/h) | Low: 10 High: 16 | Min: 20 Max: 35 |
| Fuel Type | Diesel, GTL, HVO, Petroleum/kerosene | Diesel, GTL, HVO, Petroleum/kerosene |
| Dimensions LxWxH (cm) | 435x228x266 | 485x228x268 |
| Empty Weight (kg) | 1700 | 2200 |
Characteristics
Built into a sturdy trailer for safe transport.
Bypass available to connect the MBT to existing circuits with its own water pump.
Ability to use different Fuel types (diesel, HVO and GTL).
Ability to connect an external fuel tank.
Equipped with display for easy operation.
Powerful internal water pump for large circuits.
Equipped with various safety systems such as a fire valve, maximum thermostat, minimum & maximum pressure sensors and pressure relief valve.
When using external fuel tank, it automatically switches from internal to external tank.
Equipped with Fleet Manager hardware (Calculus) as standard.
- Targeted heating of construction sites, sports and major events.
- Mobile heating centre for powerful, efficient heating solutions (for industry). Quick to set up, they are ideal for construction sites, emergency heating and other temporary applications such as heat supply during heating system refurbishment or failure.
- Targeted heating of construction sites, sports and major events.
- Mobile heating centre for powerful, efficient heating solutions (for industry). Quick to set up, they are ideal for construction sites, emergency heating and other temporary applications such as heat supply during heating system refurbishment or failure.
