VTB-15000
SKU: 40107025
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
VTB

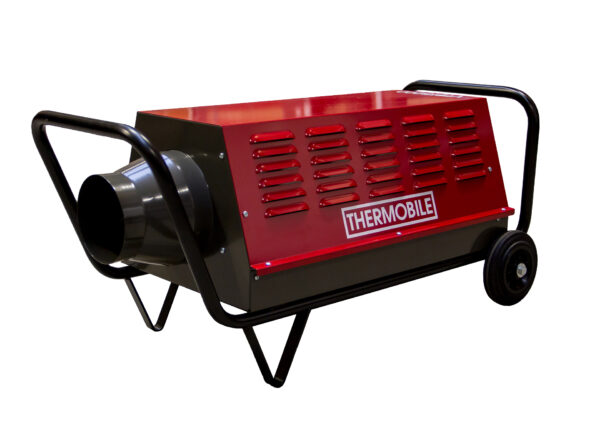

The VTB, a robust electric heater made for heating rooms in new or existing construction. With its double jacket, the VTB is extremely safe, even during a power failure when the fan is no longer working. A built-in thermostat keeps the room in which the VTB is located at the right temperature.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
15
-
400/3/50
-
1000
-
0 – 6 – 9 – 15
-
36 – 60 – 100
-
8 – 14 – 23
-
Yes
-
150
-
86x48x52
-
102x46x51
-
33
-
39
Characteristics
Double-walled with a corrosion-resistant sheet steel tube and outer casing.
Equipped with one or more maximum thermostats that switch off the heating elements in case of overheating due to low air flow or blockages thereof.
After cooling down, another automatic reset follows.
Control by built-in thermostat.
An air hose can be connected for heating hard-to-reach areas.
Because of the double jacket, the outside of the heater does not get hot in case of power failure or malfunction, damage to the surface is thus prevented.
Design is very robust and ideally suited for long-term use in harsh conditions.
Developed for heating spaces in (new) construction and supporting drying projects in water damage and renovations, among others.
VTB models
Compare Performances
Performance Chart
| VTB-3000 | VTB-18000 | VTB-9000 | VTB-15000 | |
|---|---|---|---|---|
| Max. Capacity (kW) | 3 | 18 | 9 | 15 |
| Power Connection (V/ph/Hz) | 230/1/50 | 400/3/50 | 40//3/50 | 400/3/50 |
| Max. luchtverplaatsing (m³/u) | 225 | 1000 | 550 | 1000 |
| Setting Range | 0 - 3 | 0 - 9 - 18 | 0 - 4.5 - 9 | 0 - 6 - 9 - 15 |
| Delta ΔT (ºC) | 60 | 70 - 110 | 100 | 36 - 60 - 100 |
| Measured Amperage 230V (A) | 13 | 14 - 26 | 11.5 - 13 | 8 - 14 - 23 |
| Built-In Thermostat | Yes | Yes | Yes | Yes |
| Air Outlet Cone Ø (mm) | 98 | 150 | 120 | 150 |
| Dimensions LxWxH (cm) | 40x34x31 | 86x48x52 | 68x34x31 | 86x48x52 |
| Packaged Dimensions LxWxH (cm) | 45x36x35 | 72x36x35 | 102x46x51 | |
| Weight (kg) | 11 | 33 | 18 | 33 |
| Packaged Weight (kg) | 12 | 39 | 21 | 39 |
| Fuel Type | Electricity | Electricity | Electricity | Electricity |
