VAL-6 KB
SKU: 40106100
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
VAL

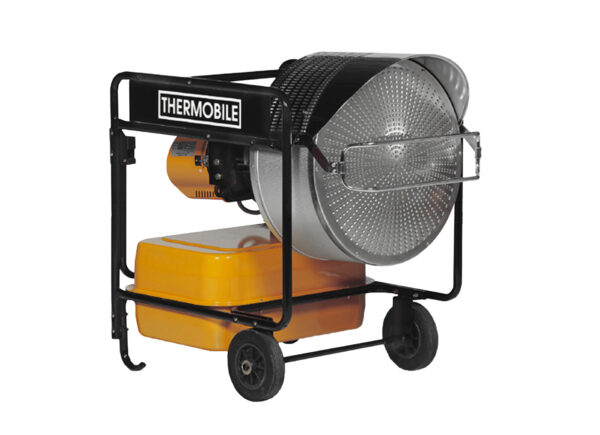

Experience instant, targeted heat with the Thermobile VAL Heaters. This oil-fired infrared heater delivers efficient heating without air displacement and, with its compact and portable design, is the ideal solution for areas where immediate heat is needed.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
40
-
0.25
-
Diesel, Petroleum/kerosene
-
3.7
-
60
-
Yes
-
Yes
-
No
-
91x69x91
-
70x66x93
-
57
-
61
Characteristics
Equipped with photocell monitoring for safe operation.
Stable mobile base and vertically adjustable head (1-STEP also horizontally adjustable).
The infrared heater is set up to heat a specific room through its radiant heat. The heater has an exceptionally high efficiency of 100% as all fuel is converted directly into heat.
As there is no air movement, the infrared heater is exceptionally quiet.
Operation via thermostat possible.
Low-odour and silent heat without air movement.
EPX: 2-stage burner with larger disc (20% larger) for further heat range. Heated oil filter so fuel remains liquid.
- Local heating of workplaces, storage sheds, workshops and warehouses.
- Reheating and thawing of machines and materials.
VAL models
Compare Performances
Performance Chart
| VAL-6 1-STEP | VAL MIDI | VAL-6 EPX | VAL-6 KB | |
|---|---|---|---|---|
| Max. Capacity (kW) | 40 | 33 | 40 | 40 |
| Measured Amperage 230V (A) | 0.25 | 0.25 | 0.25 | 0.25 |
| Fuel Type | Diesel, Electricity | Diesel, Petroleum/kerosene | Diesel, Petroleum/kerosene | Diesel, Petroleum/kerosene |
| Max. Fuel Consumption (l/h) | 3.7 | 3.1 | 3.7 | 3.7 |
| Fuel Tank Capacity (l) | 40 | 35 | 58 | 60 |
| Fuel Level Gauge | Yes | Yes | Yes | Yes |
| Thermostat Connection | Yes | Yes | Yes | Yes |
| Built-In Thermostat | No | No | Yes | No |
| Dimensions LxWxH (cm) | 120x62x93 | 71x66x81 | 124x65x97 | 91x69x91 |
| Packaged Dimensions LxWxH (cm) | Box 1: 64x70x72 Box 2: 63x67x42 Box 3: 42x42x32 | 69x67x93 | 71x95x102 | 70x66x93 |
| Weight (kg) | 53 | 38 | 50 | 57 |
| Packaged Weight (kg) | Item packed in 3 boxes (box 1: 25 kg, box 2: 23 kg, box 3: 9 kg) total 57 kg. | 43 | 59 | 61 |
