MBSC-165
SKU: 30166000
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
MBSC

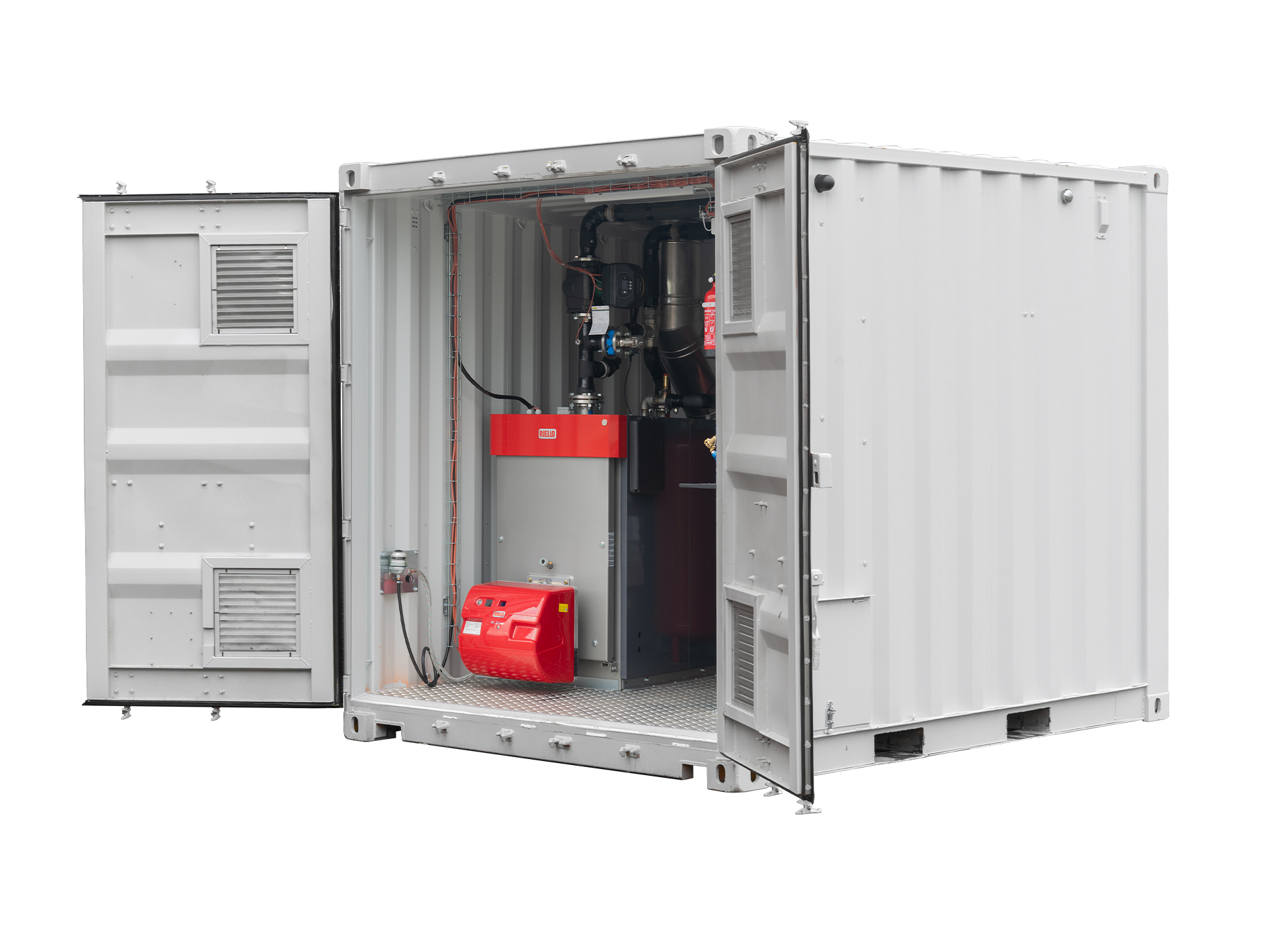

Discover our mobile boiler in a 10ft container – a compact powerhouse for temporary heat on site.
This oil-fired high-efficiency boiler is fully integrated into a robust 10ft container and designed for fast deployment on construction sites, during renovations or in emergency situations.
The unit delivers reliable heating with a capacity of up to 350 kW and a maximum water temperature of 90 °C. Thanks to the integrated water pump and smart controls, this mobile boiler is ideal for heating large systems. The use of alternative fuels such as HVO and GTL also makes this unit a future-proof choice.
Just like our MBT boiler, remote monitoring is possible via the Fleet Manager system (Calculus), giving you real-time insights into performance and consumption at any time.
A safe, sustainable, and flexible solution – fully operational upon arrival and suitable for a wide range of applications.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
165
-
100
-
90
-
>95
-
2 camlock
-
5
-
230/1/50
-
2000
-
Low: 10 High: 16
-
Diesel, GTL, HVO, Petroleum/kerosene
-
2991x2438x2591
-
2600
Characteristics
Built into a 10ft shipping container for safe transport.
Bypass available to connect the MBT to existing circuits with its own water pump.
Ability to use different Fuel types (diesel, HVO and GTL).
Ability to connect an external fuel tank.
Equipped with display for easy operation.
Powerful internal water pump for large circuits.
Equipped with various safety systems such as a fire valve, maximum thermostat, minimum & maximum pressure sensors and pressure relief valve.
When using external fuel tank, it automatically switches from internal to external tank.
Equipped with Fleet Manager hardware (Calculus) as standard.
- Targeted heating of construction sites, sports and major events.
- Mobile heating centre for powerful, efficient heating solutions (for industry). Quick to set up, they are ideal for construction sites, emergency heating and other temporary applications such as heat supply during heating system refurbishment or failure.
MBSC models
Compare Performances
Performance Chart
| MBSC-350 | MBSC-165 | |
|---|---|---|
| Max. Capacity (kW) | 350 | 165 |
| Min. Capacity (kW) | 200 | 100 |
| Max. Outlet Temperature (°C) | 90 | 90 |
| Net Efficiency 2nd Phase (%) | >95 | >95 |
| Aansluitingen circuit (Inch) | 2 camlock | 2 camlock |
| Measured Amperage 230V (A) | 6 | 5 |
| Power Connection (V/ph/Hz) | 230/1/50 | 230/1/50 |
| Fuel Tank Capacity (l) | 2000 | 2000 |
| Max. Fuel Consumption (l/h) | Min: 20 Max: 35 | Low: 10 High: 16 |
| Fuel Type | Diesel, GTL, HVO, Petroleum/kerosene | Diesel, GTL, HVO, Petroleum/kerosene |
| Dimensions LxWxH (cm) | 2991x2438x2591 | 2991x2438x2591 |
| Empty Weight (kg) | 2900 | 2600 |
