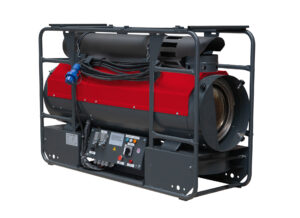

ITA-35 RCS
SKU: 41352490B
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
ITA R
The Thermobile ITA-35 R line is a mobile tent heater with several advantages over other ITA models. Unlike other tent heaters, the ITA-35 R does not have a built-in tank that needs to be emptied for transport. Instead, this heater is powered by a diesel-filled 20-litre sheet steel jerry can. An advantage is that the ITA-35 R produces clean air through its flue exhaust without releasing combustion gases or fumes into the room. Moreover, it is suitable for different types of diesel, including HVO and GTL.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
24
-
1500
-
1.7
-
Yes
-
150
-
350
-
150
-
Diesel, HVO, Petroleum/kerosene
-
2.4
-
Yes
-
119x40x80
-
130x52x98
-
74
-
90
Characteristics
High-efficiency heat exchanger ( approx. 89% ).
Blow-out temperature with a delta ΔT of 50°C.

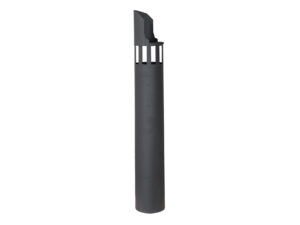

Supplied complete with chimney, room thermostat with 10m cable and jerry can connection.
Equipped with high-pressure pump for 2-way pipe.
Equipped with ventilation mode.
Easy maintenance and simple operation.
Composed of high-quality sheet metal with powder coating for a long service life.
RCS: Compact stackable, 2 units on a euro pallet.
RCS: Possibility of removable transport wheels.

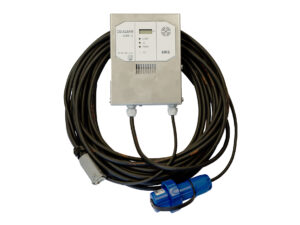

RCS: CO detector connection available as standard.
RCS: Supplied with heated oil filter as standard.
- Heating of various tents including rescue tents, emergency shelters and men's tents.
- Heating decontamination units and emergency hospitals.
ITA R models
Compare Performances
Performance Chart
| ITA-35 RCS | ITA-35 R | |
|---|---|---|
| Max. Capacity (kW) | 24 | 24.8 |
| Air Displacement (m³/h) | 1500 | 1500 |
| Measured Amperage 230V (A) | 1.7 | 1.3 |
| CO Detector Connection | Yes | No |
| Max. Fan Pressure (Pa) | 150 | 150 |
| Air Outlet Cone Ø (mm) | 350 | 300 |
| Chimney Connection Ø (mm) | 150 | 150 |
| Fuel Type | Diesel, HVO, Petroleum/kerosene | Diesel, HVO, Petroleum/kerosene |
| Max. Fuel Consumption (l/h) | 2.4 | 2.4 |
| Thermostat Connection | Yes | Yes |
| Dimensions LxWxH (cm) | 119x40x80 | 125x58x62 |
| Packaged Dimensions LxWxH (cm) | 130x52x98 | 129x67x82 |
| Weight (kg) | 74 | 48 |
| Packaged Weight (kg) | 90 | 75 |
