IMAC-2000 S
SKU: 41729600/02
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
IMAC

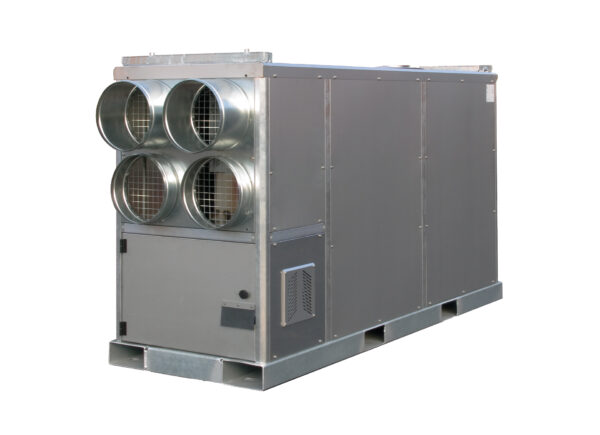

The Thermobile IMAC, is our most powerful mobile air heater with a capacity of up to 380kW. Built on a sturdy galvanised frame with stainless steel panels which makes the IMAC both robust and easy to transport. Designed to provide air heating to large spaces. Our IMAC line burns both diesel and alternative fuels such as HVO and GTL.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
200
-
12000
-
7.5
-
400/3/50
-
600
-
600
-
200
-
Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane
-
20
-
Yes
-
240x80x135
-
545
Characteristics
Automatic burner control with thermostat connection.
High-efficiency heat exchanger ( approx. 92% ).
Blow-out temperature with a delta ΔT of about 47°C.
The EC fan is equipped with a soft starter.
Equipped with overheating protection and temperature limiter.
2T: Equipped with two-stage burner.
Equipped with intercal industrial burner with flow control. Alternative burners available (Riello oil or gas burner e.g.).
Economical thanks to recirculation connection option.
Easily movable via forklift slots and lifting eyes and stackable.
Fitted with phase-following relay as standard.
Fleet Manager possible.
- Heating of storage sheds, workspaces, halls.
- Drying and heating new construction and renovation projects.
- Ventilate temporary shelters, tents (summer mode).
- Drying of agricultural products.
IMAC models
Compare Performances
Performance Chart
| IMAC-2000 S | IMAC-3000 EC 2T | IMAC-1500 EC | IMAC-2200 EC 2T | IMAC-1200 EC | IMAC-2000 EC 2T | IMAC-4000 | IMAC-2000 EC | IMAC-1200 RDD | |
|---|---|---|---|---|---|---|---|---|---|
| Max. Capacity (kW) | 200 | 295 | 145 | 220 | 120 | 200 | 383 | 200 | 110 |
| Air Displacement (m³/h) | 12000 | 13000 - 17450 | 10000 | 9000 / 12000 | 8500 | 9000 - 12000 | 18000 - 24000 | 12000 | 8500 |
| Measured Amperage 230V (A) | 7.5 | 8.2 - 5.4 | 6 | 4 - 6 | 3.5 | 4 - 6 | 9/20/20.3 | 6 | 15.5 |
| Power Connection (V/ph/Hz) | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 400/3/50 | 230/1/50 |
| Max. Fan Pressure (Pa) | 600 | 750 | 600 | 350 - 550 | 500 | 350 - 600 | 400/1000/700 | 600 | 350 |
| Air Outlet Cone Ø (mm) | 600 | 2x600 | 600 | 600 | 600 | 600 | 2x600 | 600 | 600 |
| Chimney Connection Ø (mm) | 200 | 300 | 200 | 200 | 200 | 200 | 300 | 200 | 200 |
| Fuel Type | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane | Diesel, GTL, HVO, Natural gas, Petroleum/kerosene, Propane |
| Max. Fuel Consumption (l/h) | 20 | 21.5 - 27 | 13.6 | 13.9 / 20.5 | 11.4 | 13.9 | 26 - 38 | 20 | 10.4 |
| Thermostat Connection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Dimensions LxWxH (cm) | 240x80x135 | 298x100x165 | 220x80x135 | 240x80x135 | 220x80x135 | 240x80x135 | 385x120x201 | 240x80x135 | 240x80x134 |
| Weight (kg) | 545 | 800 | 467 | 467 | 550 | 1300 | 545 | 545 | |
| Min. Capacity (kW) | 230 | 140 | 140 | 261 |
