GA-42
SKU: 40277000/02
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
GA

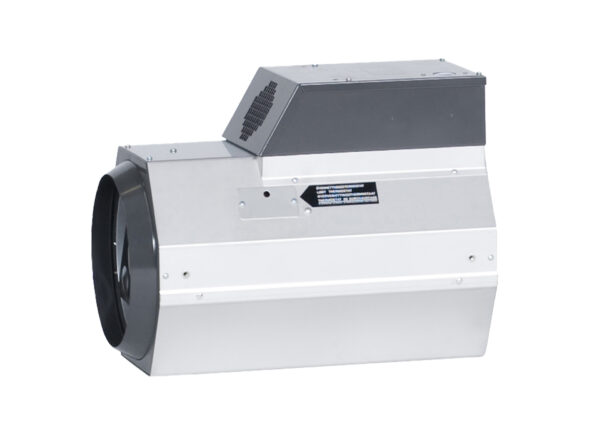

The Thermobile GA has proven itself as a propane heater that is ideally suited for drying and storing agricultural products. The GA can be placed both horizontally and vertically, allowing it to be hung in any location without any problems. With its robust design made of stainless steel plate, this heater will be used for a long time without any problems.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
44
-
18
-
760
-
0.6
-
1/2
-
Propane
-
1.4
-
3.2
-
Yes
-
58x37x45
-
70x40x50
-
19
-
20
Characteristics
Equipped with burner automatic, ionisation flame protection, thermostat connection and hose breakage protection.
Low-maintenance, moisture- and dust-proof control cabinet.
Clean combustion air through outside air intake (models GA-60/85/110).
All GA models can be connected to a modulating system.
Can be placed both vertically and horizontally for fan position drying systems.

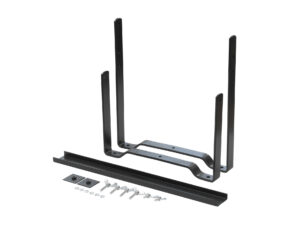

Suspension brackets and wheel sets optionally available. (wheel set for GA-110 as standard)
Large and adjustable capacity.
KIWA approved.
- Heating of livestock buildings.
- Heating greenhouses and polytunnels.
- Drying of agricultural products.
GA models
Compare Performances
Performance Chart
| GA-60 | GA-42 | GA-24 | GA-85 | GA-110 | |
|---|---|---|---|---|---|
| Max. Capacity (kW) | 63 | 44 | 31 | 93 | 130 |
| Min. Capacity (kW) | 27 | 18 | 16 | 39 | 54 |
| Air Displacement (m³/h) | 2400 | 760 | 760 | 2400 | 4000 |
| Measured Amperage 230V (A) | 0.64 | 0.6 | 0.6 | 0.64 | 2.20 |
| Gasaansluiting Ø (inch) | 1/2 | 1/2 | 1/2 | 1/2 | |
| Werkdruk aan de kachel (bar) | 0.4 - 2 | 0.4 - 1.5 | 0.4 - 1.5 | 0.4 - 2 | 0.4 - 2 |
| Fuel Type | Propane | Propane | Propane | Electricity | |
| Min. Fuel Consumption (l/h) | 1.9 | 1.4 | 1.1 | 2.8 | 3.9 |
| Max. Fuel Consumption (l/h) | 4.8 | 3.2 | 2.1 | 6.7 | 9.3 |
| Thermostat Connection | Yes | Yes | Yes | Oui | Yes |
| Dimensions LxWxH (cm) | 109x46x47 | 58x37x45 | 58x37x45 | 109x46x47 | 129x67x94 |
| Packaged Dimensions LxWxH (cm) | 110x50x60 | 70x40x50 | 70x40x50 | 110x50x60 | |
| Weight (kg) | 36 | 19 | 19 | 36 | 55 |
| Packaged Weight (kg) | 41 | 20 | 20 | 41 | 71 |
| Gas Connection Ø (inch) | 1/2 | ||||
| Working Pressure at the heater (Bar) | 0.4 - 1.5 |
