AGA-45
SKU: 40745200/02
Available on backorder
Need advice? Call +31 (0)7 65 87 34 50
or send a message
AGA

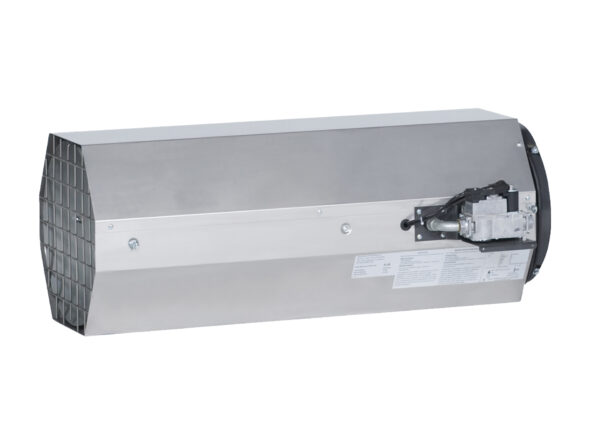

The AGA natural gas-fired air heater is perfect for heating stables, greenhouses and polytunnels, as well as drying agricultural products. With 100% efficiency, the direct-fired AGA delivers instant heat.
Equipped with a burner with electronic ignition, ionisation protection and thermostat connection, the AGA guarantees safe and efficient operation. A separate fan (except the GA-100 model) optimises the air supply and ensures an outlet temperature between 100°C and 130°C.
The air heater is moisture- and dust-proof, easy to maintain, and flexibly positioned. Available in capacities of 45, 75 and 105 kW, suitable for propane or natural gas, with optional outdoor air intake.
Need advice? Call +31 (0)7 65 87 34 50
or send a message
Specifications
-
45
-
2500
-
15
-
1.0
-
1/2
-
3.2
-
5.0
-
4.0
-
Natural gas, Propane
-
Yes
-
106x68x40
-
113x85x70
-
37
-
52
Characteristics
Electrical components in moisture- and dust-proof control cabinet.
Burner with electronic ignition, ionisation protection and thermostat connection.
Separate fan for optimising air supply to burner. (except GA-100)
Blow-out temperature between 100°C - 130°C.
Direct heat, 100% efficiency.
Provision for outdoor air intake as an accessory.
Easy and quick access for service and maintenance.
Models can be placed horizontally and vertically.
Big air throw.
- Heating of pig and chicken houses.
- Drying of agricultural products.
- Heating greenhouses and polytunnels.
AGA models
Compare Performances
Performance Chart
| AGA-111 | AGA-45 | AGA-75 | AGA-102 | AGA-100 | |
|---|---|---|---|---|---|
| Max. Capacity (kW) | 105 | 45 | 75 | 105 | 105 |
| Air Displacement (m³/h) | 7000 | 2500 | 4500 | 7000 | 7000 |
| Air Throw (m) | 40 | 15 | 25 | 40 | 40 |
| Measured Amperage 230V (A) | 5.3 | 1.0 | 1.9 | 5.5 | 4.8 |
| Gas Connection Ø (inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Max. fuel consumption propane (kg/h) | 7.5 | 3.2 | 5.4 | 7.5 | |
| Max. fuel consumption natural gas 25 (m³/h) | 11.2 | 5.0 | 8.3 | 6.0-13.9 | 11.2 |
| Max. fuel consumption natural gas 20 (m³/h) | 9.0 | 4.0 | 7.1 | 4.3-11.2 | 9.1 |
| Fuel Type | Natural gas, Propane | Natural gas, Propane | Natural gas, Propane | Natural gas | Natural gas, Propane |
| Thermostat Connection | Yes | Yes | Yes | Yes | Yes |
| Dimensions LxWxH (cm) | 138x57x85 | 106x68x40 | 110x81x52 | 138x70x85 | 138x60x85 |
| Packaged Dimensions LxWxH (cm) | 155x75x101 | 113x85x70 | 113x85x70 | 155x75x101 | 155x75x101 |
| Weight (kg) | 84 | 37 | 52 | 86 | 70 |
| Packaged Weight (kg) | 110 | 52 | 67 | 110 | 110 |
